LIVE, ON-LINE ONLY PUBLIC AUCTION
BUSINESS CLOSED-IMMACULATE PATTERN SHOP

CONSOLIDATED PATTERN WORKS, INC.
754 E. GLENWOOD AVE., AKRON, OHIO 44310

TUESDAY, JUNE 14, 2022, 10 AM
INSPECTION WILL BE OFFERED ON MONDAY, JUNE 13, 10-5 EST

Featuring
Quintax Model QM-505 CNC Gantry Router, 5 Axis
(2) Kindt Collins/Master Model RT, 24” Disc Sanders
State Model D24, 24” Disc Sander
(2) Powermatic Model 81 Vertical Band Saws
Crescent 30” Vertical Band Saw
Powermatic Model 66, 10” Table Saw
Oliver #66 Sliding Bed Pattern Maker’s Lathe
Oliver #199, 24” Planer
Oliver #166-4, 16” Jointer
Vertical Band Saws*Zimmerman Sander
Beaver Vertical Mill*Saylor-Beall Air Compressor
Atlas 10” X 20” Tool Room Lathe, 110/1/60 AC
Plant Wide Dust Collection System
Large Quantity Pattern Maker’s Supplys
Numerous Additional Machines
Tooling, Drills, Routers, Clamps, Vises, Etc.

SALE MANAGED BY BIDSPOTTER.COM
TO REGISTER, BID, OR FOR TERMS AND CONDITIONS, VISIT
BIDSPOTTER.COM

IF YOU REQUIRE ASSISTANCE IN REGISTERING, OR FOR PROXY BIDDING, PLEASE CALL OUR OFFICE AT 937-426-8446

THOMPSON AUCTIONEERS, INC.
937-609-6354*www.thompsonauctioneers.com
Stephen Thompson, Auctioneer
Ohio License #63199566109

Dates

Bidding Dates

Preview Dates

Marketing

CNC ROUTER

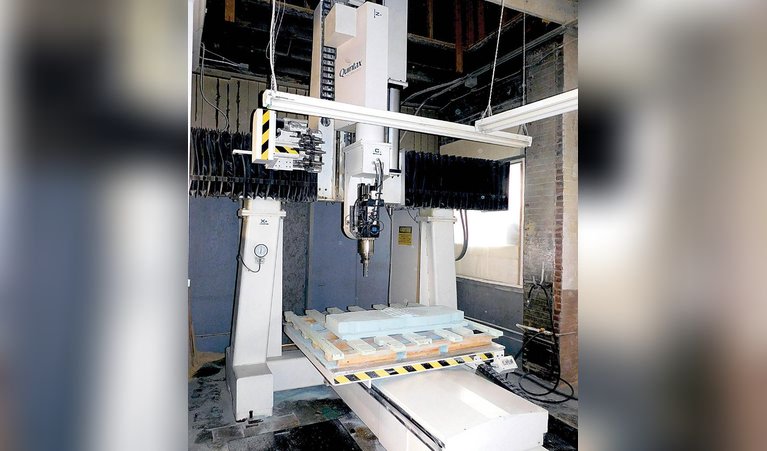

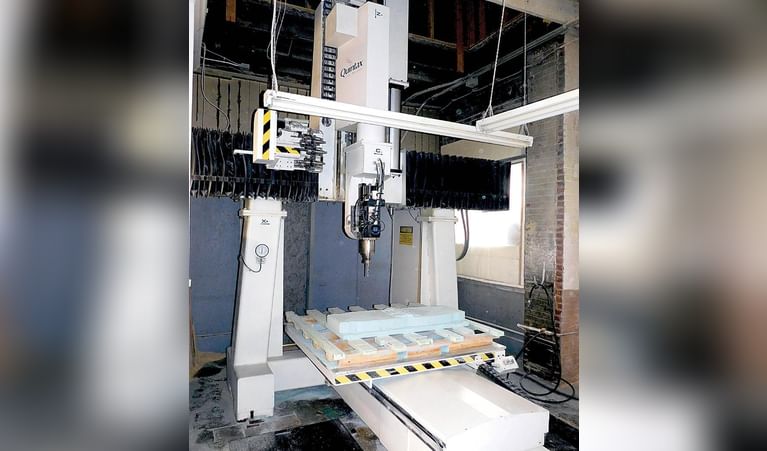

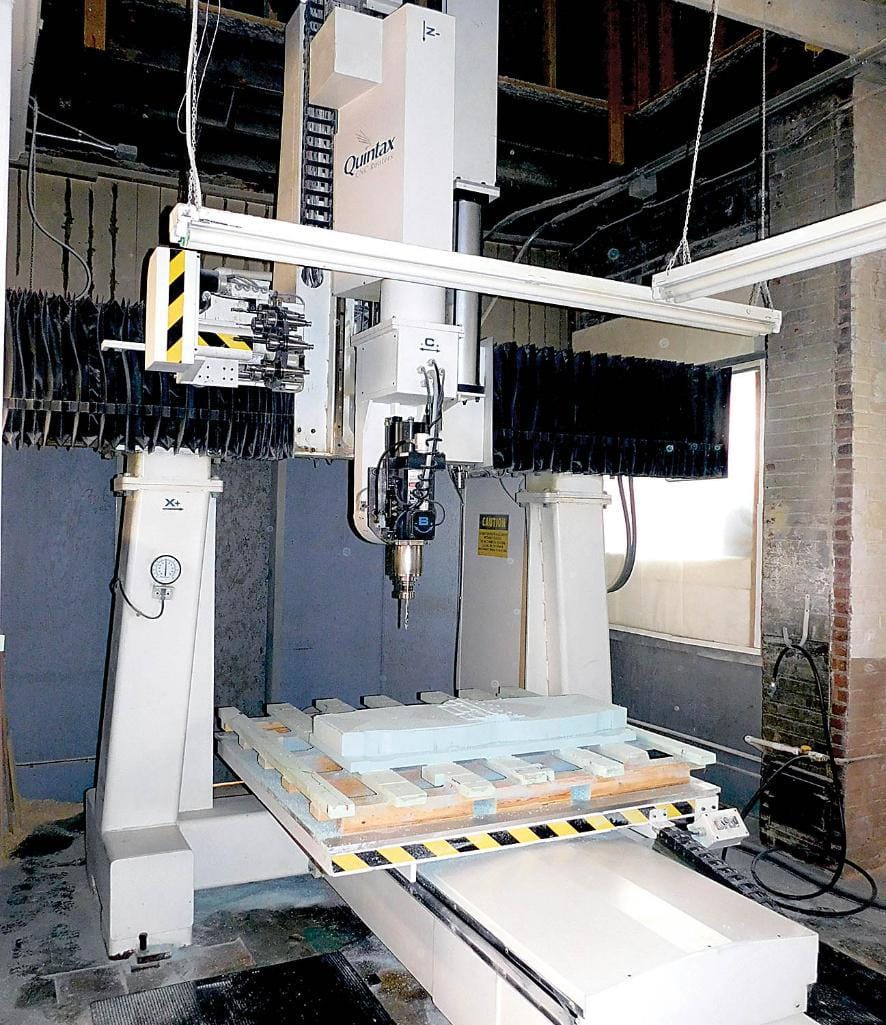

• Quintax Model QM-505-S5.1 Gantry Style CNC Router, s/n Q1006, New 1999, Fagor 8055/B-M CNC Control, 5-Axis, 60” X 60” Table,
• X Axis 61”, Y Axis 87”, Z Axis 48”, C Axis Rotation 360 Degree, B Axis Rotation 270 Degree, Colombo 12 HP Spindle, 18,000 RPM, 40 Taper, 8 Position ATC, with Air Counter Balance to Head, Auto Lube, Way Covers, (3) Integrated Safety Mats, Vacuum Table Attachment (Complete Minus Vacuum Pump), Also Includes Computer with Operating Software, Ideas Generator Series 9 Software

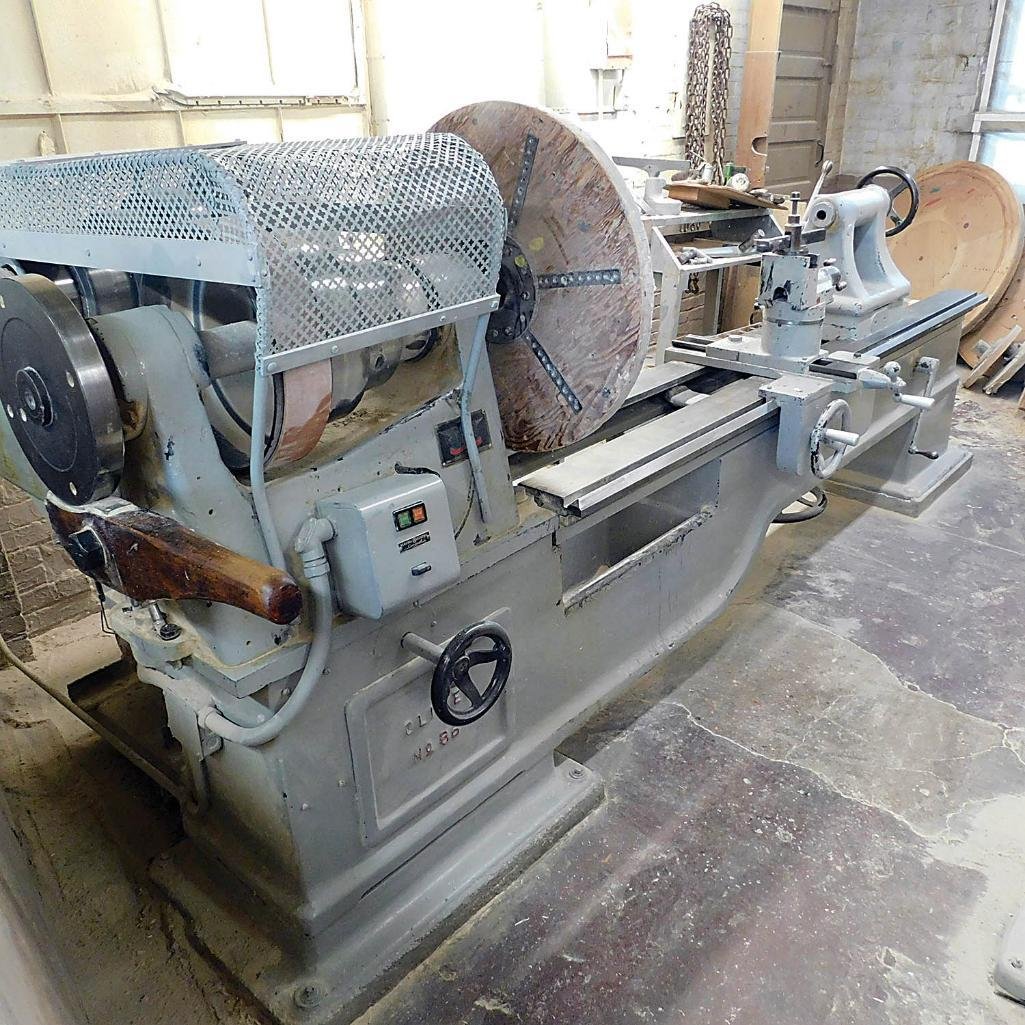

• Oliver Model 66 Sliding Gap Pattern Maker’s Lathe, s/n 44392, 30 1/2” Swing Over Bed, 51 1/2” Swing in Gap, Centers 72” with Bed Closed, Centers 102” with Bed Extended, 84” Max. Swing on Outboard, Includes Tool Supports for Both Standard and Outboard Work and Extra Compound for Working in the Gap, 16 Speed (8/8)

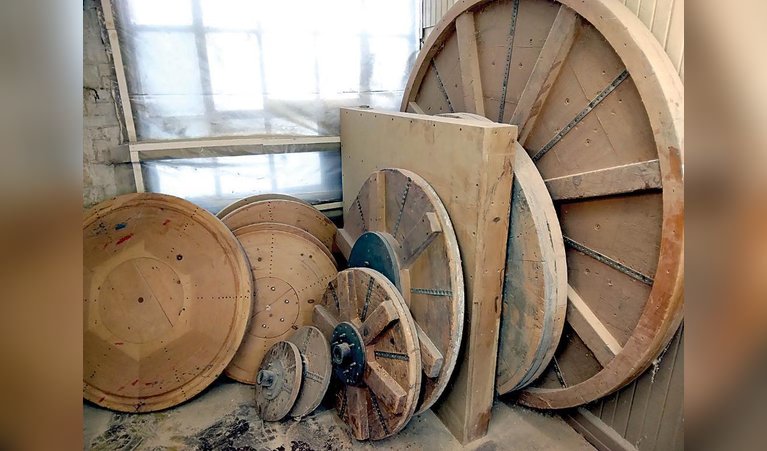

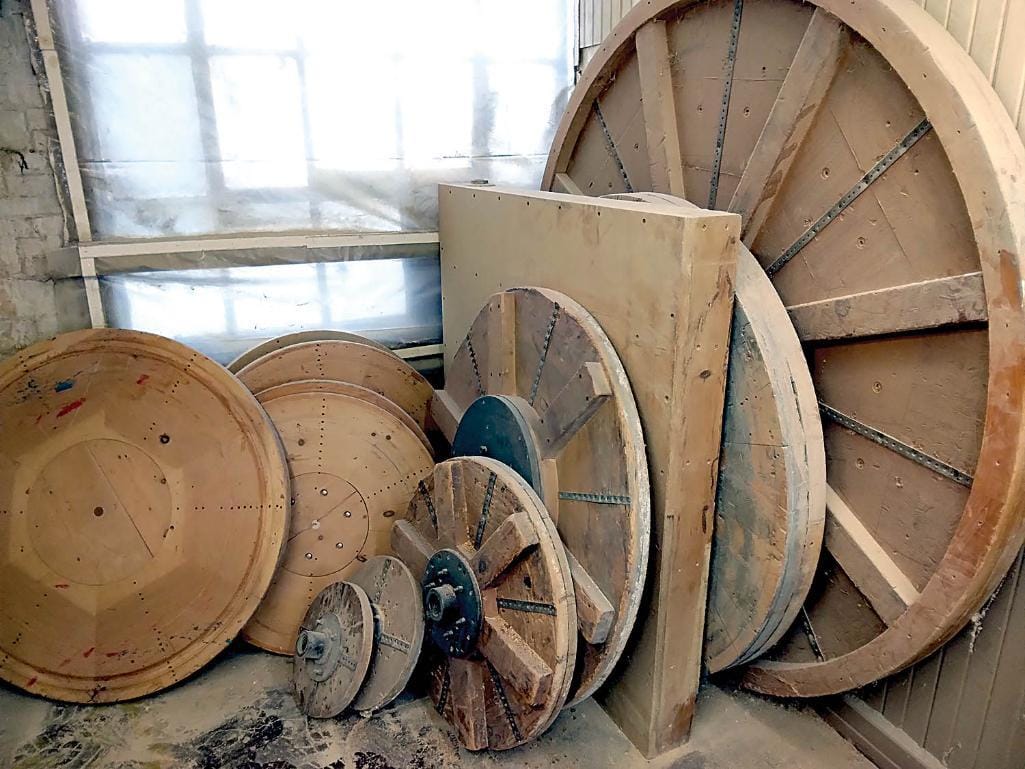

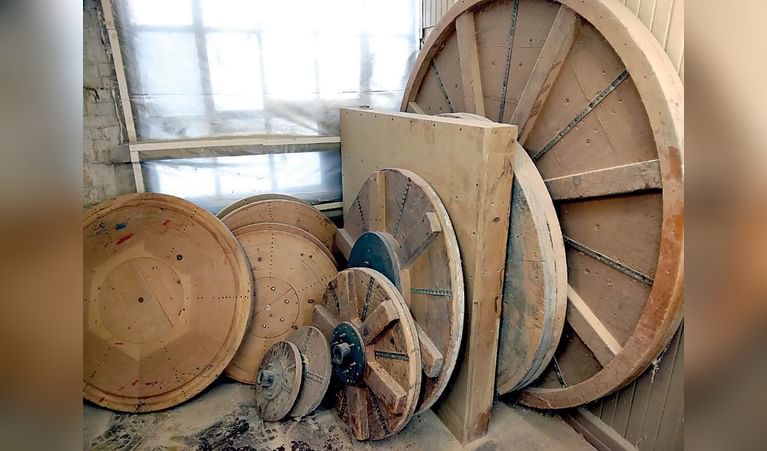

• (15) Pattern Makers Face Plates, Up To 84”

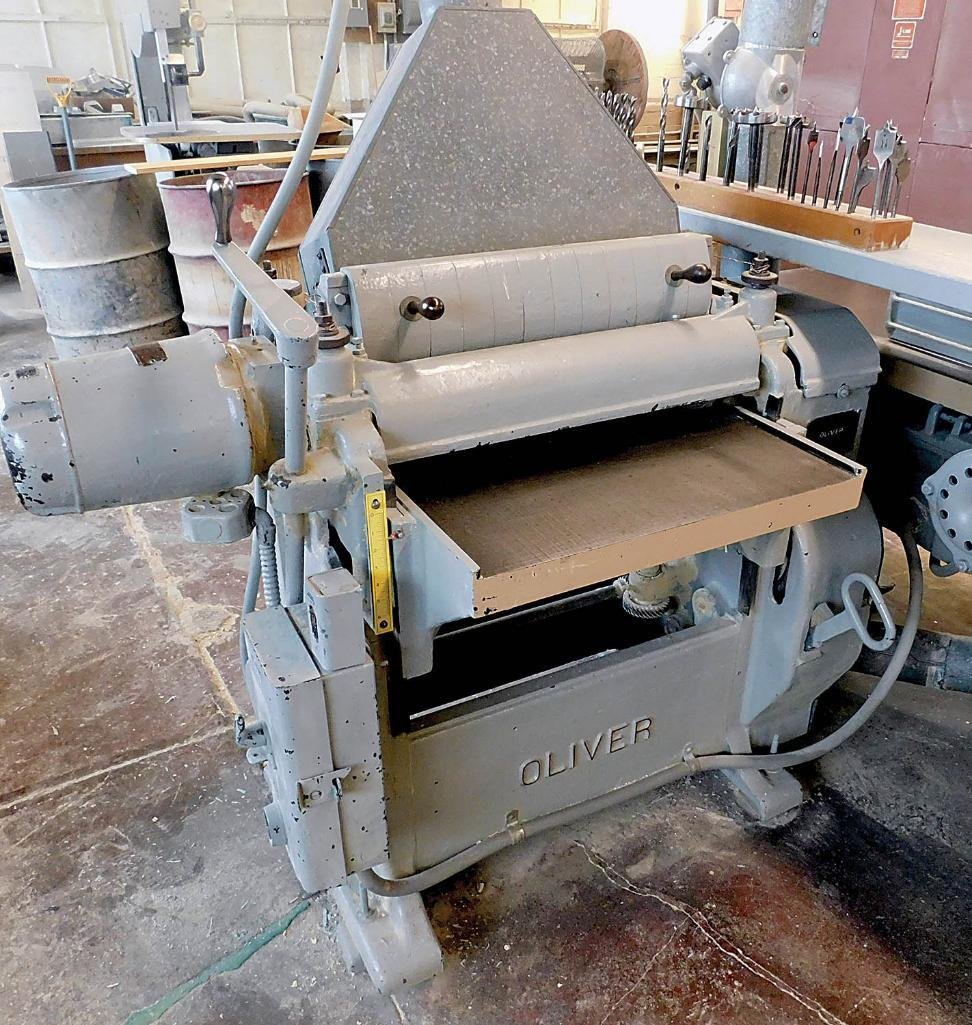

• Oliver Model 199 Planer, s/n 35438, 24”, Direct Drive, 7 1/2” HP, 6” Max. Height, 3 Feed Rolls

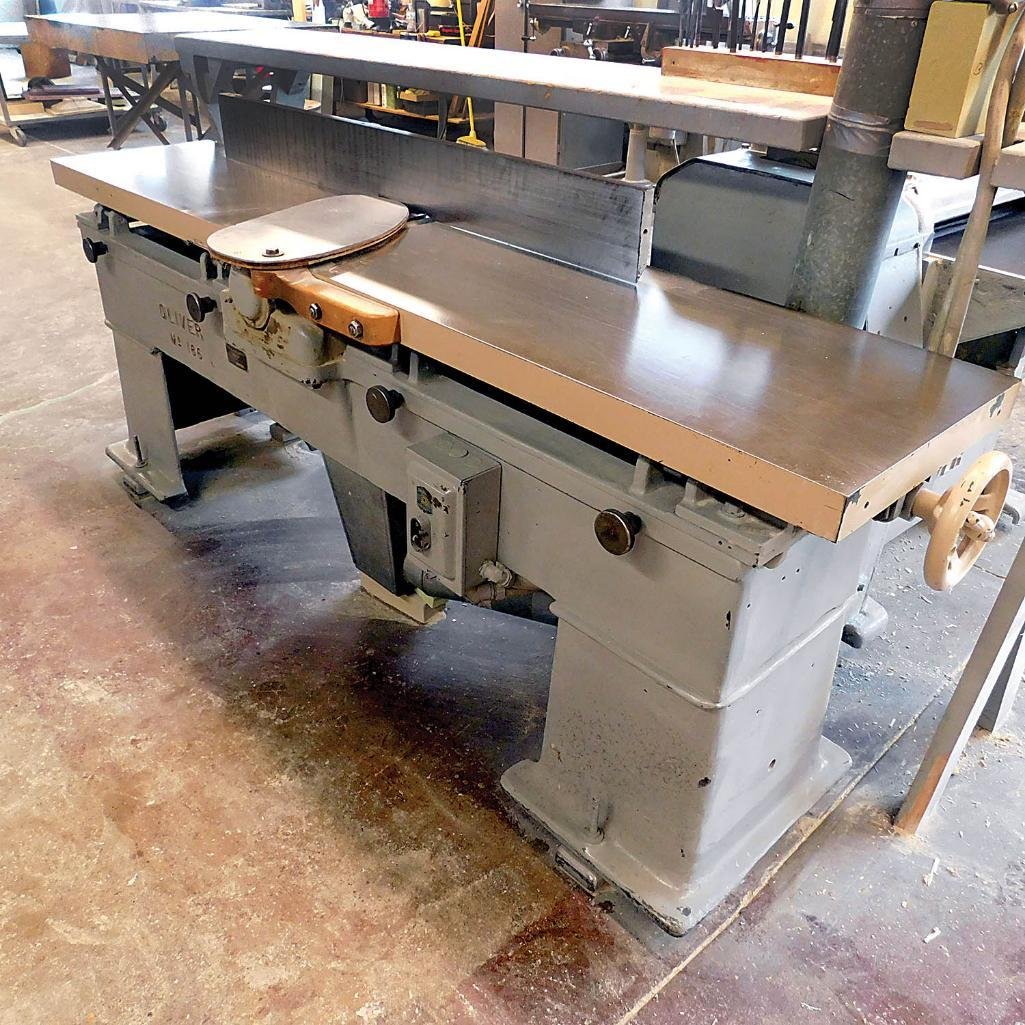

• Oliver Model 166-4 Jointer, 16”, Table 17” X 87”, 3 Cutters, Rear Fence, 3/4” Max. Depth of Cut

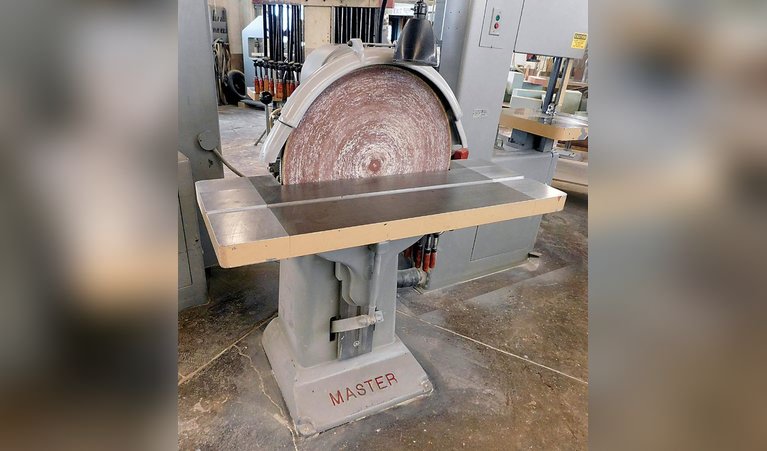

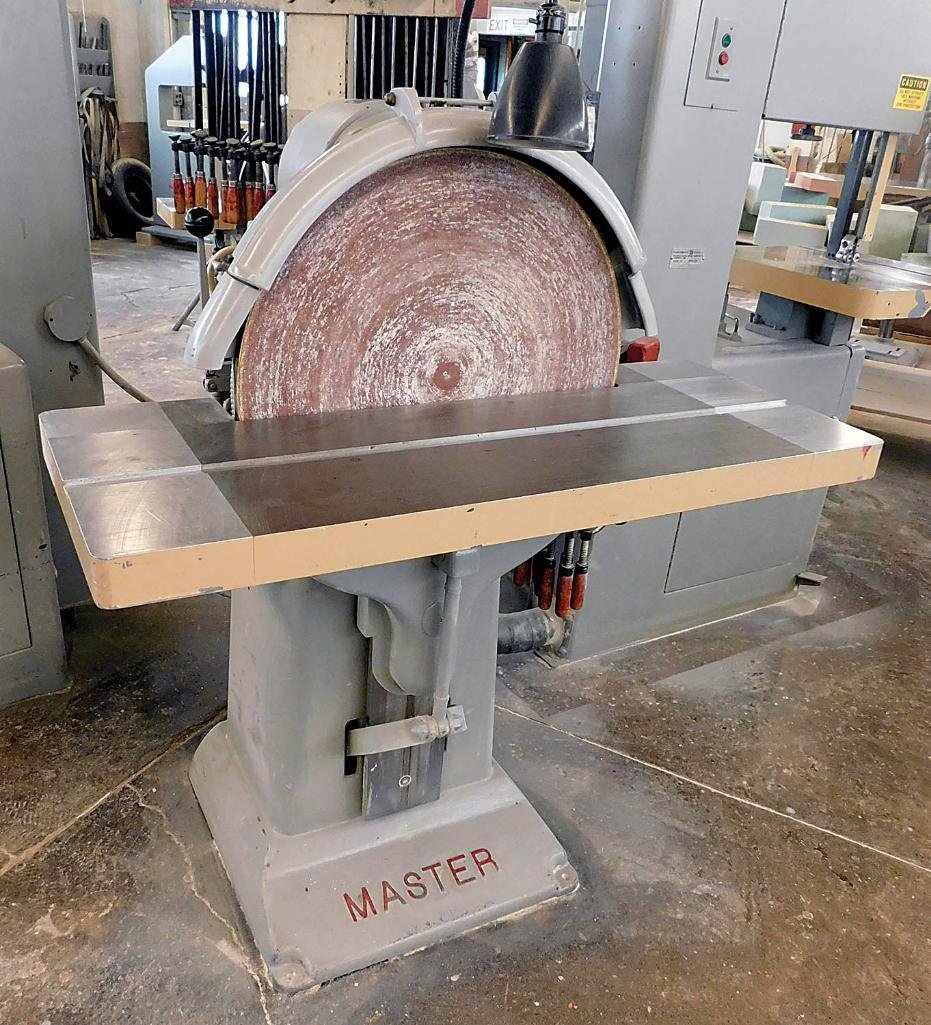

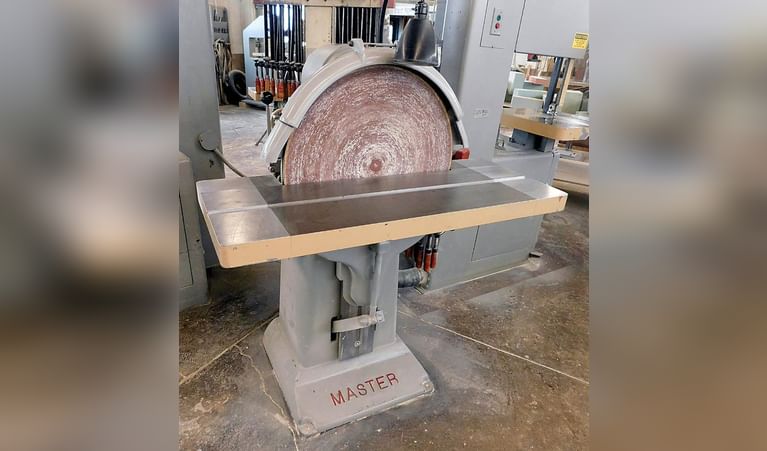

• Kindt Collins/Master Model RT Disc Sander, s/n 5066, 24”, Tilt Table, Reversing
• Kindt Collins/Master Model RT Disc Sander, s/n 5043, 24”, Tilt Table, Reversing

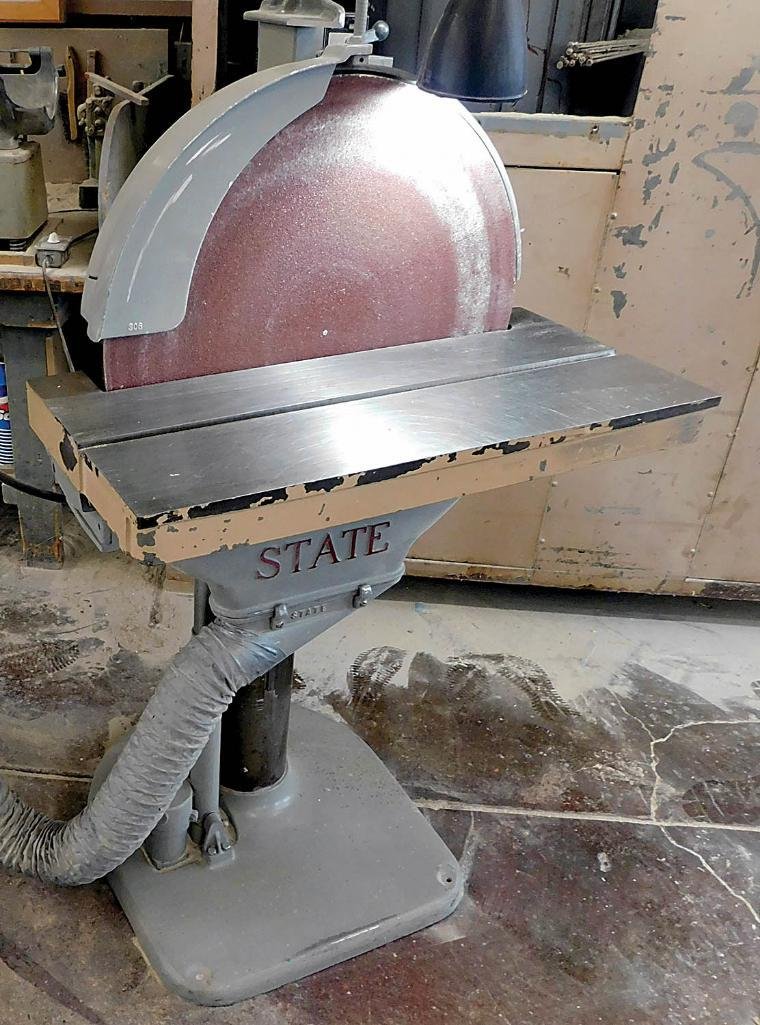

• State Model D24 Disc Sander, s/n 405, 24”, Power Table, Tilt Table, Reversing
• State Model D16 Disc Sander, s/n 4540, 16”, 1 HP
• Master 15” Disc Sander, 110/1/60 AC

• Zimmerman Model PS Profile Sander, s/n 549, 1 5/16” Belt Width, 20” X 20” Tilt Table

• State Model D4 Oscillating Spindle Sander, s/n 2242, 3/4”

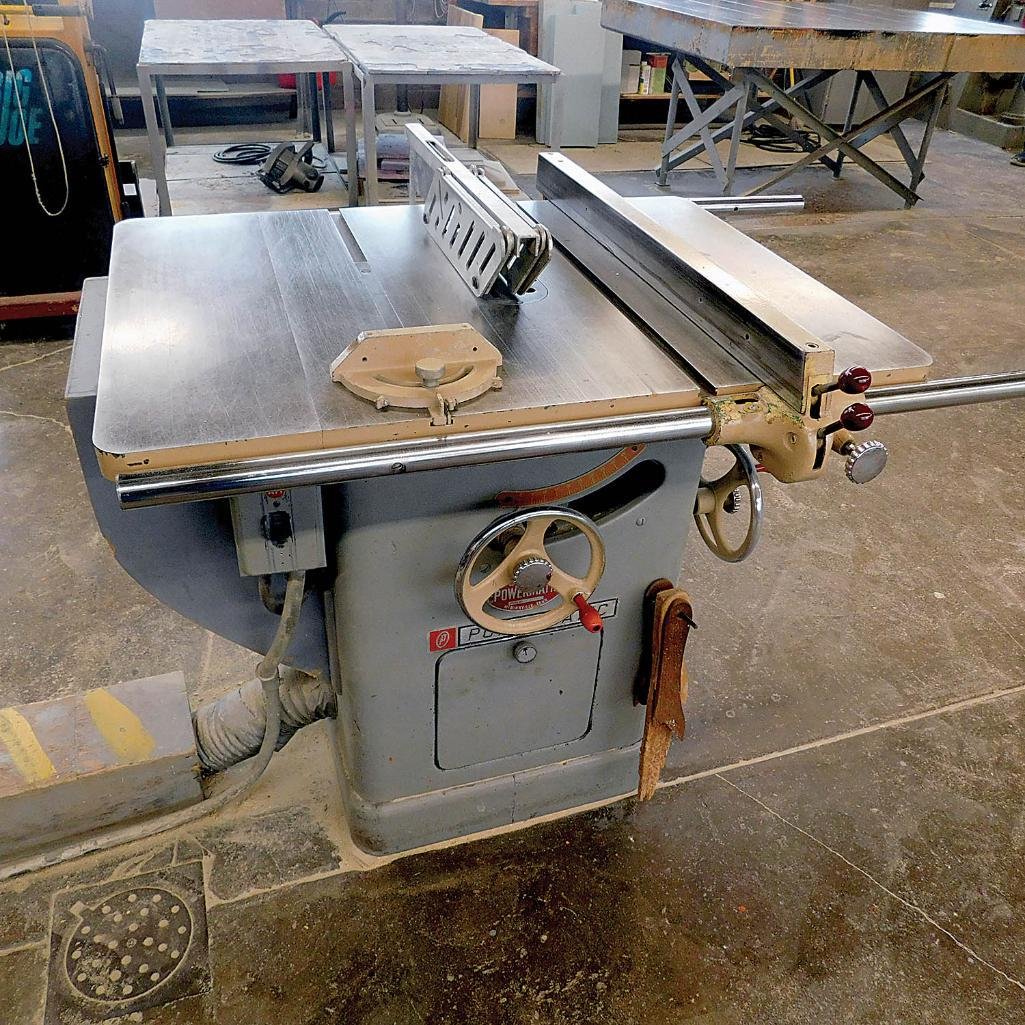

• Powermatic Model 66 Table Saw, 10”, s/n 66-1194, with Fence, Safety Guard

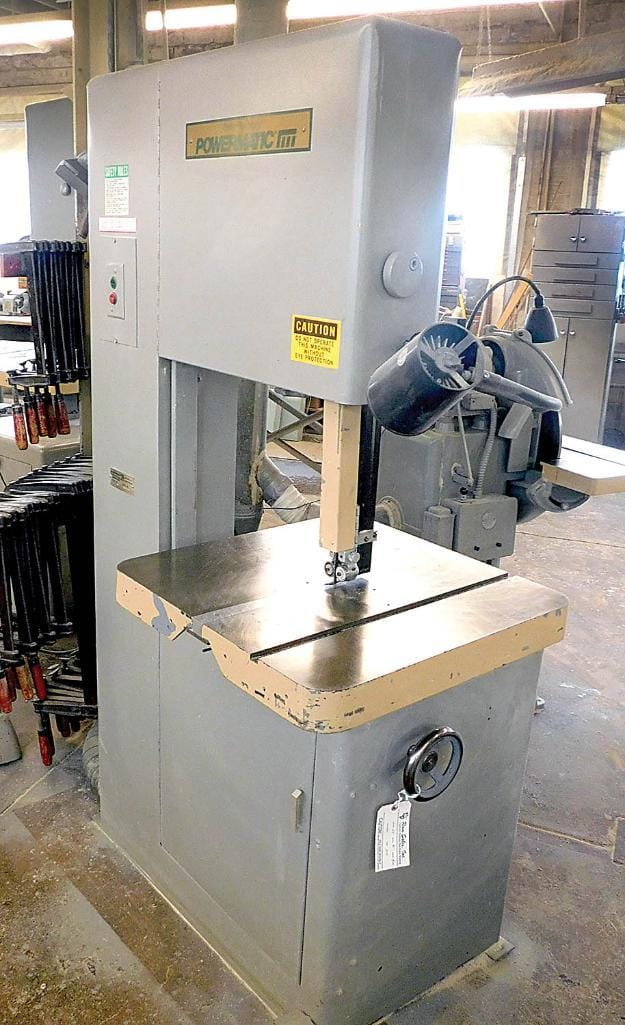

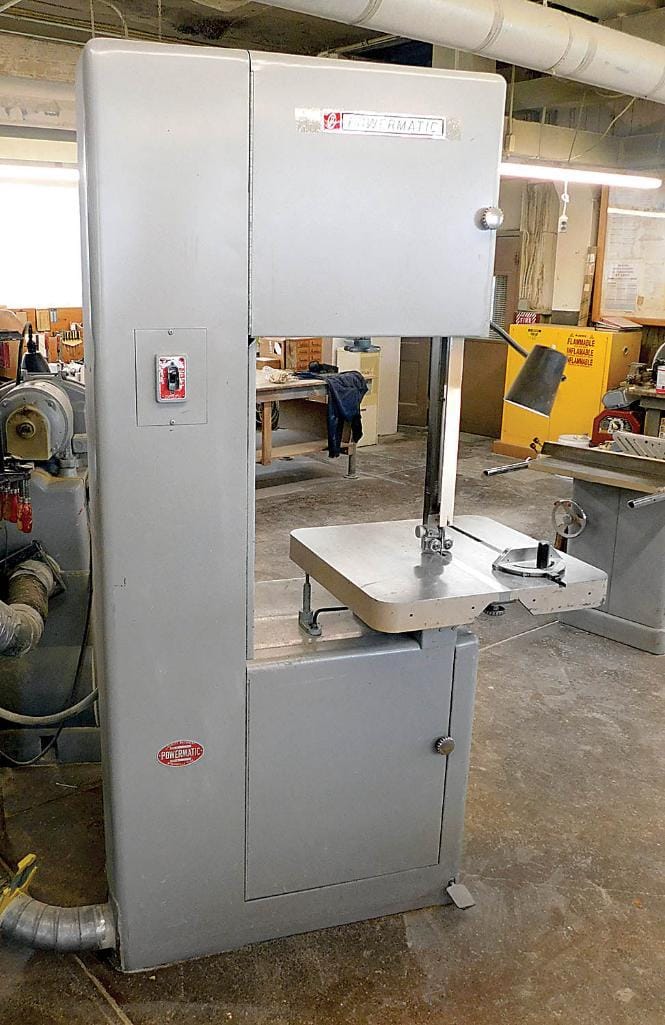

• Powermatic Model 81 Vertical Band Saw, s/n 8481143, 20”, Tilt Table
• Powermatic Model 81 Vertical Band Saw, s/n 66-3052, 20”, Tilt Table

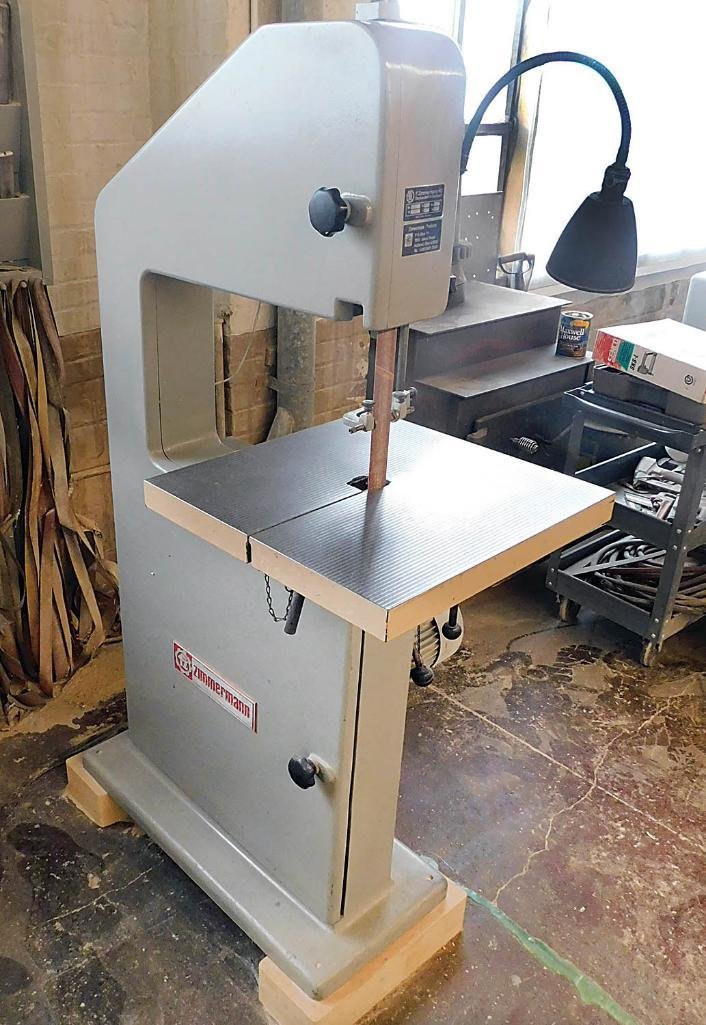

• Powermatic Model 143 Vertical Band Saw, 14”, 110/1/60 AC
• Crescent 31” Vertical Band Saw
• Boice Crane 15” Vertical Band Saw, 110/1/60 AC

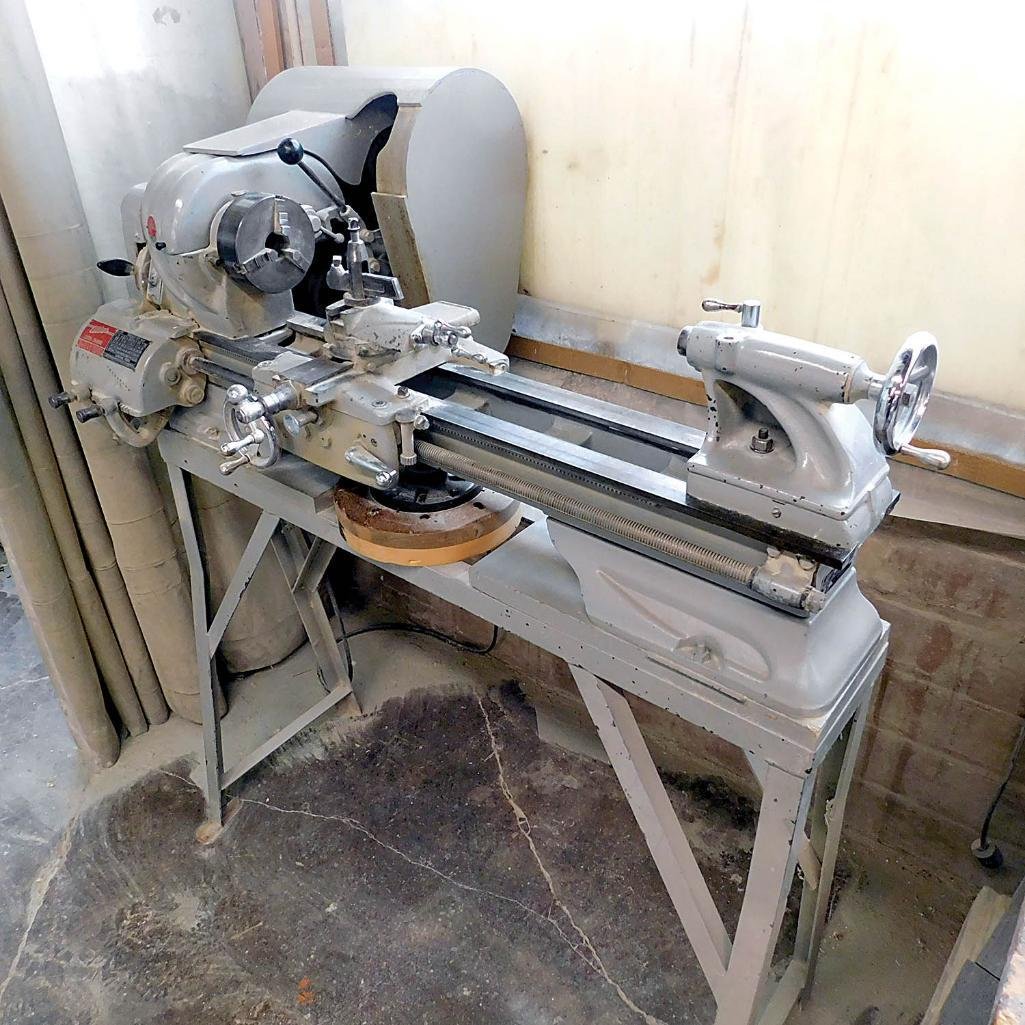

• Atlas Model 0C42 Bench Lathe, s/n 090533, 10” X 20”, 110/1/60 AC, 3 & 4-Jaw Chuck, Face Plate, Tooling

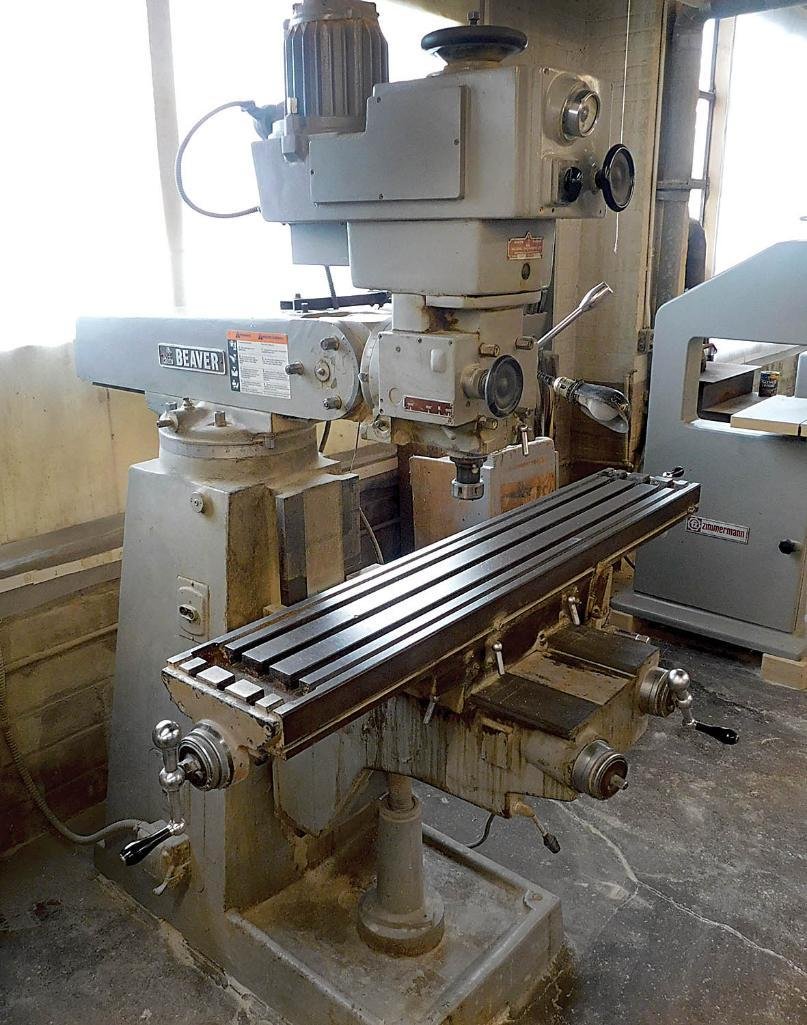

• Beaver Model VBRP Vertical Mill, s/n 41650/2, 10” X 56” Table, 30 Taper, Power Feed in X Axis, Right Angle Head Attachment

• SSC Panel Saw, 60” Left and Right Side Travel, 60” Vertical Travel

• Delta Rockwell Model 17-600 Single Spindle Drill Press, s/n 14/2866, 17”, 220/1/60 AC
• Delta Rockwell 15” Sindle Spindle Drill Press, s/n 115-8022, 110/1/60 AC

• Brodhead-Garrett “J-Line” Plant Wide Dust Collector, s/n 5100, Twin Fan (Second System also available, not currently installed)

• Saylor Beall 10 HP Air Compressor
• Lincoln AC 225 Amp Welder
• Craftsman Radial Arm Saw
• Westinghouse Model CLY2067-1 Industrial Fan, Size S413M
• Lincoln Lincoguard 10 HP Blower Motor, Framre 215T, 1,745 RPM, 230/460/3/60

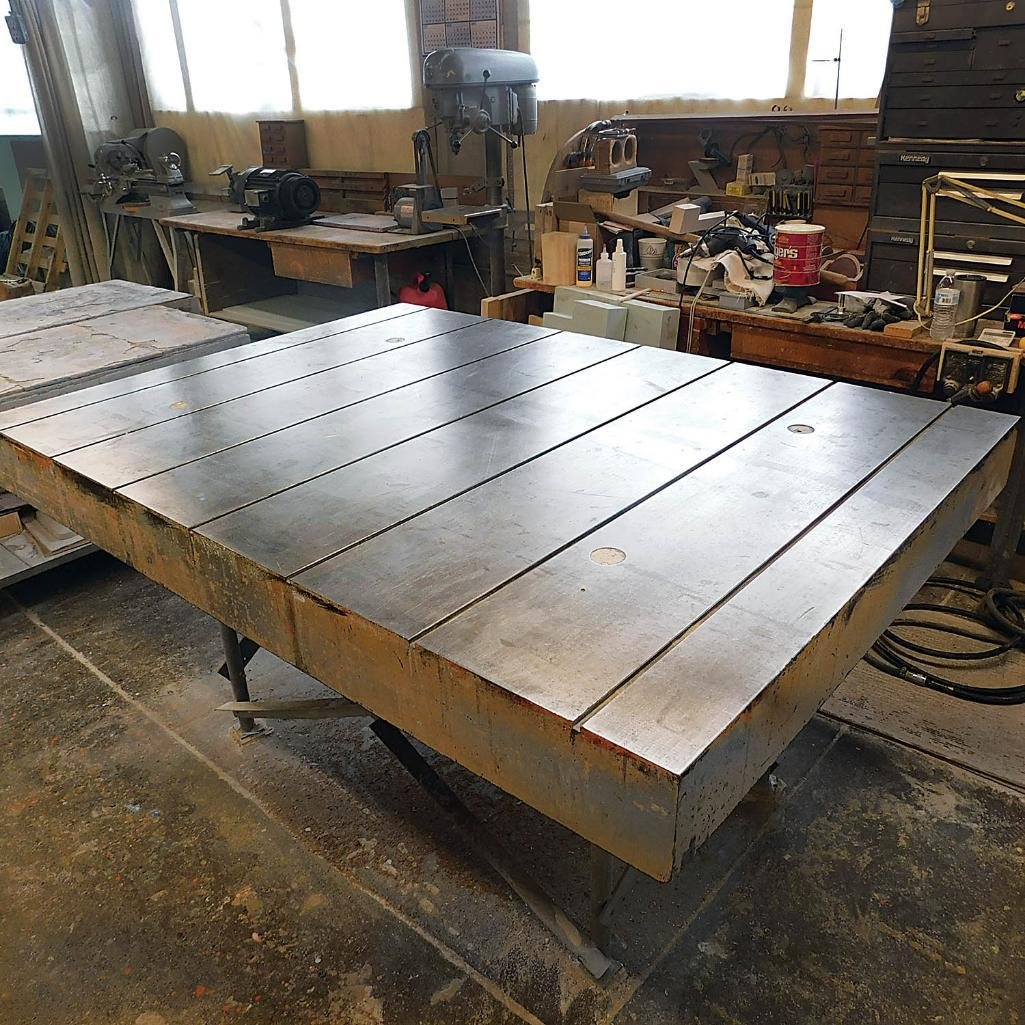

• Vises, Clamps, Wetzler Woodworker’ Clamps (Large Quantity), Mills, Drills, Reamers, Taps, Dies, Rotary Table, Router Bits, Drill Bits, Air Hose, Chain, Binders, Shipping Items, Pallet Jack, Jacobs Chucks, Small Pedestal Grinders, Sanders, and Drill Presses, Large Steel Layout Table, 50” X 70” X 6”, Horses, Fans, Ladders, Wax Fillet, Stamps, Pattern Letters, Arbor Press, Red Devil Paint Mixer, Shop and Office Furniture, Work Benches, Wood Material Rack, (2) Vintage Safes with Combinations, Hand Tools, Power Tools, Air Tools, Senco Nailer, High Speed Power Drills, Right Angle Drills, Fire Proof Cabinet, Hoists, Big Joe Electric Lift with Platform and Forks, Many Additional Items

Preview

INSPECTION: Monday, June 13, 10:00 am - 5:00 pm ET
